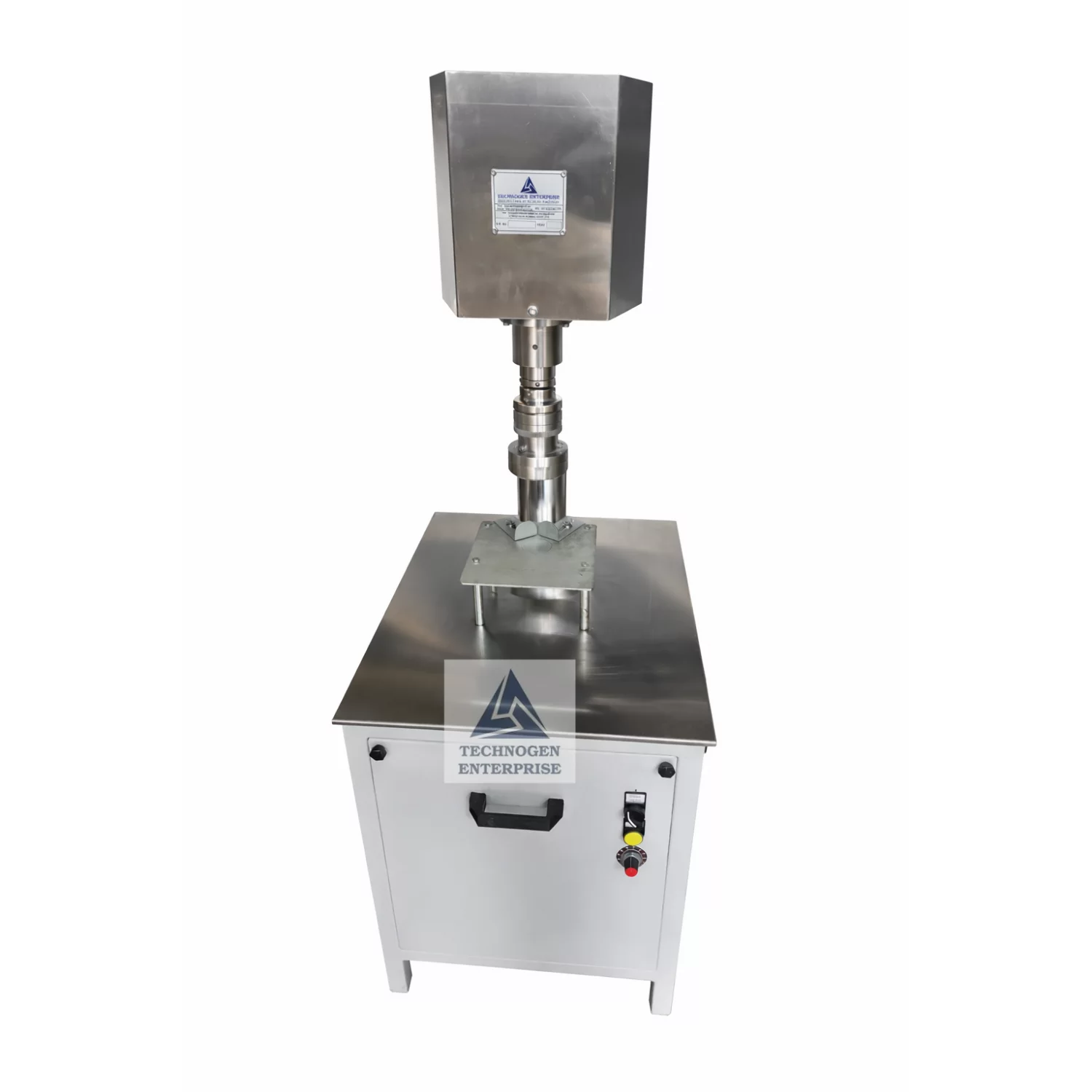

Semi Automatic Screw Capping Machine

AvailabilityPre Order
CategoryScrew Capping Machine, Capping Machines, Bottle Capping Machines
Payment MethodsCash, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 0.0/5 based on 0 customer review

Semi Automatic Screw Capping Machine Details

Avail best quality Semi Automatic Screw Capping Machine from Technogen Enterprise who is quality manufacturer, supplier & exporter of range of Screw Capping Machine. Semi Automatic Screw Capping Machine is built with heavy duty body for long lasting operation and is perfect solution for start up industries where production requirement is low but qualitative screw capping is of prime importance.

This capping Machine can deliver the output around 20 to 25 bottle per minute depending upon the human efficiency and machine can work with variety shape of bottle like round, flat, square, triangular without change part for change in bottle size. Screw Capping head is integrated with clutch system and torque adjustment features.


Salient Features:

  • Compact & multipurpose unit.
  • Heavy duty body is built using Stainless Steel Material.
  • Doors are provided to facilitate the servicing of machine
  • Bottle & Screw Cap loading is manual.
  • Screw Capping head with mechanically torque adjustment facility.
  • Motorized Screw capping head with clutch system
  • Adjustable bottle height gauge provided for easy & quick setting.
  • Speed Variation through Variable Frequency drive.
  • Easy operating interface as operating panel mounted at front side of machine.
  • No or Minimum change parts require for different container diameter.
  • Low Power consumption
  • Maintenance free Machine


Technical specification:




Type of Capping

Screw Type Capping on Bottle

Output/ Minute

20 to 25 bottle per minute depending upon Operator efficiency

Number of Screw Capping head

1 Nos.

Power Consumption (KW)

0.75 KW

Electrical Connection

230 V, Single phase, 50 HZ

Screw Cap Diameter (mm)

18 mm to 52 mm (With Change part)

Container Diameter (mm)

Ø 22 mm to Ø 100 mm

Container Height   (mm)

58 mm to 240 mm

Overall Dimension

1250 mm (L) x 750 mm (W) x 1400 (H) Approx.
