Automatic Rotary Bottle Screw Capping Machine Manufacturer

AvailabilityPre Order
Serial NumberTGSC-80/ TGSC-120 / TGSC-150
CategoryScrew Capping Machine, Bottle Capping Machines, Capping Machines
Payment MethodsCash, COD, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Automatic Rotary Bottle Screw Capping Machine Details

The Automatic Rotary Bottle Screw Capping Machine is a comprehensive series of rotary Screw capping machine & accessible in 4 head–6 head–8 head and 12 head configuration and can deliver the production speed from 60 Bottle per minute to 200 bottle per minute. This multi head Screw Capping Machine is used to apply screw cap on a round, flat, square bottle. It can handle glass, plastic, pet, HDPE, LDPE bottle.

This Screw Capper use simple mechanism such as bottles are separated through Feed worm then bottle further index through star wheel assembly. During the Screw Capping process, the Screw cap comes from the cap feeder unit and then to the Shute. Bottle, while in motion in star wheel, pick the cap from shut and capping head execute the screw capping. Thus, This Capping Equipment is known as Shut pick up type Screw Capping Machine.

The Multi head rotary bottle Screw capping machine comes with a wide choice for cap feeding unit such as vibratory bowl feeder, mechanical orientator and elevator. Our Cap tightening machine comes with top-notch industry safety feature such as “NO Bottle–No Screw Cap”, “Safety clutches” at star wheel and many more.

Technogen enterprise is manufacturer, supplier and exporter of wider range of Screw Capping machine in Ahmedabad, Gujarat, India and This Bottle Capping Machine price is economical & Bottle Screw capping Machine available for Sales worldwide with high-quality pre sales and after sales service.


 Salient Features:

  • CGMP Model
  • Contact Part with Bottle & Screw are made from Stainless steel 304 material.
  • Screw cap sealing machine can be used for Glass Bottle, plastic bottle, Pet Bottle with ease.
  • Single Motor Synchronizes Machine Conveyor, Star Wheels & capping Turret.
  • Slat Stainless Steel conveyor and as an optional plastic modular belt or delrin slat belt available.
  • Safety clutches to stop machine.
  • No Bottle–No Cap feature.
  • Jaw Type Screw Capping Head for perfect Screw capping. Capping head with mechanical torque change features.
  • Cap feeding unit either Vibrator Feeder or Mechanical Orientator or Cap feeder Elevator.
  • Fast product Changeover
  • Maintenance free machine
  • 6 Digit production counter

 TECHNICAL SPECIFICATION:

Machine Name

Automatic 4 head Rotary Bottle Screw Capping Machine

Automatic 6 head Rotary Bottle Screw Capping Machine

Automatic 8 head Rotary Bottle Screw Capping Machine

Model

TGSC-80

TGSC-120

TGSC-150

Brand

Technogen Enterprise

Technogen Enterprise

Technogen Enterprise

Direction

Left to Right

Left to Right

Left to Right

Automation Grade

Automatic

Automatic

Automatic

Machine Usage application

Apply Screw cap on the Glass , Plastic and Pet Bottle

Apply Screw cap on the Glass , Plastic and Pet Bottle

Apply Screw cap on the Glass , Plastic and Pet Bottle

Type of Screw Capping

Shut pick up (single cam control pick up and release of cap)

Shut pick up (single cam control pick up and release of cap)

Shut pick up (single cam control pick up and release of cap)

Machine Production Speed

Up to 60 to 70 Bottle per minute depending upon the diameter of the bottle

Up to 110 to 120 Bottle per minute depending upon the diameter of the bottle

Up to 130 to 140 Bottle per minute depending upon the diameter of the bottle

Machine Transmission

Worm gear box coupled with Motor

Worm gear box coupled with Motor

Worm gear box coupled with Motor

Speed Variation

Through Variable Frequency Drive

Through Variable Frequency Drive

Through Variable Frequency Drive

Machine Motion

Rotary Continuous

Rotary Continuous

Rotary Continuous

Machine Finish

Stainless Steel Matt Finish

Stainless Steel Matt Finish

Stainless Steel Matt Finish

Bottle diameter

22 mm to 80 mm max

22 mm to 80 mm max

22 mm to 80 mm max

Bottle height

55 mm to 200 mm max

55 mm to 200 mm max

55 mm to 200 mm max

Screw cap diameter

22 mm to 52 mm diameter
(with the help of change part)

22 mm to 52 mm diameter
(with the help of change part)

22 mm to 52 mm diameter
(with the help of change part)

No of Screw Capping Head

4 head

6 Head

8 Head

Type of Screw Capping head

Jaw Type Screw Capping Head with mechanical torque adjustment facility

Jaw Type Screw Capping Head with mechanical torque adjustment facility

Jaw Type Screw Capping Head with mechanical torque adjustment facility

Air Pressure

2 KG/Cm2

2 KG/Cm2

2 KG/Cm2

Power Consumption

  • 1 HP for Main Drive
  • 0.25 HP for Cap feeding Unit
  • 1 HP for Main Drive
  • 0.25 HP for Cap Feeding Unit
  • 2 HP for Main Drive
  • 0.50 HP for Cap Feeding Unit

Type of Cap feeder

Vibrator feeder, Mechanical orientator and elevator available depending upon the Screw Cap to be handled

Vibrator feeder, Mechanical orientator and elevator available depending upon the Screw Cap to be handled

Vibrator feeder, Mechanical orientator and elevator available depending upon the Screw Cap to be handled

Electrical Connection

440 V ,3 Phase (4 Wire System ) 50 HZ

440 V ,3 Phase (4 Wire System ) 50 HZ

440 V ,3 Phase (4 Wire System ) 50 HZ

Control Panel

Bottom Pedant type Machine mounted

Bottom Pedant type Machine mounted

Bottom Pedant type Machine mounted

Production Counter

Inbuilt

Inbuilt

Inbuilt

Height of Conveyor from Datum

Adjustable from 800 to 850 mm

Adjustable from 800 to 850 mm

Adjustable from 800 to 850 mm

Dimension (L X W X H) mm

1830 x 850 x 1400

2130 x 875 x 1400

2130 X 915 x 1400

Change part

Required if Bottle and Cap Changes

Required if Bottle and Cap Changes

Required if Bottle and Cap Changes

Net Weight of Machine (KG)

250 KG

280 KG

300 KG

Gross Weight of Machine (KG)

450 KG

480 KG

500 KG


 Safety Features:

  • No Bottle – No Cap
  • Emergency applied – Machine stop.
  • Clutch at Feed worm – Machine stop.
  • Clutch at star wheel system – Machine stop.
  • Bottle Jam at outfeed section of machine – Machine stop.

Related Products

Automatic Single Head Screw Capping Machine

Technogen Enterprise based in Ahmedabad, Gujarat, India is manufacturer, Supplier & Exporter of Automatic Single Hea... Continue

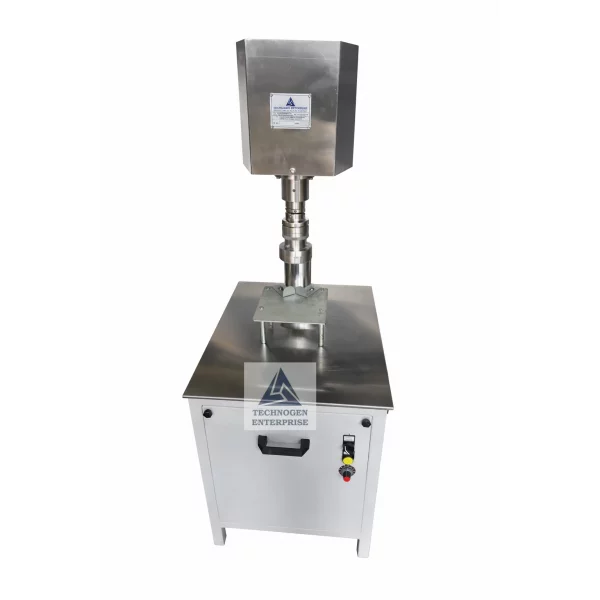

Semi Automatic Screw Capping Machine
