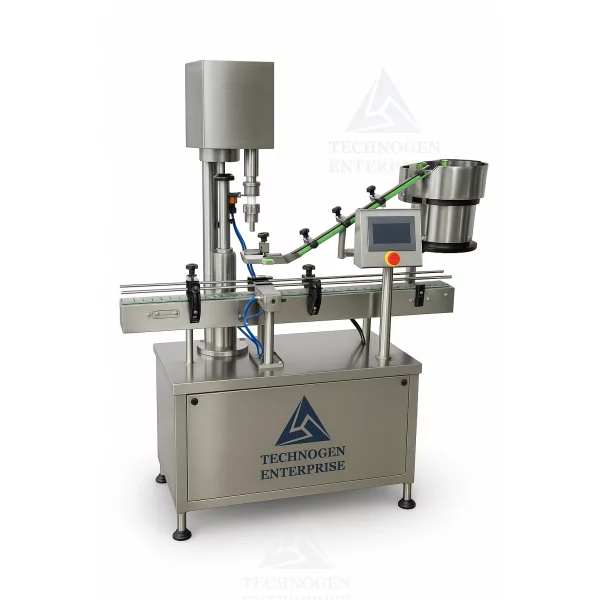

Packaging is no longer just about sealing bottles; it’s about ensuring precision, reliability, and consistency in every unit. The Automatic Single Head Servo Torque Screw Capping Machine – Model TGSC-50T, designed and manufactured by Technogen Enterprise, is a compact yet powerful solution that combines advanced servo technology with robust pneumatic systems for unmatched capping accuracy.
Engineered for pharmaceuticals, distilleries, cosmetics, food, lube oils, and pesticides, this machine is built to meet GMP standards while delivering smooth operation, minimal changeovers, and maximum efficiency.
The TGSC-50T Single Head Servo Torque Screw Capper is powered by a single synchronized motor that drives the conveyor, bottle holding system, and capping head. With an output of up to 30 bottles per minute, it is ideally suited for medium-scale production lines requiring flexibility and consistency.
Its pneumatic jaw-type capping head—driven by a servo motor—ensures precise torque measurement, preventing over-tightening or under-tightening of screw caps. The machine is versatile enough to handle containers of different shapes—round, square, or triangular—with minimal change parts.
Key built-in systems like No Bottle–No Cap and Automatic Cap Feeder On/Off enhance operational safety, efficiency, and user convenience.
| Parameter | Specification |
|---|---|
| Model | TGSC-50T |
| Direction | Left to Right |
| Type of Capping | Screw Capping |
| Electrical Supply | 1.00 HP for Main Drive |
| Output | Up to 30 Bottles/Minute |
| No. of Sealing Head | Single |
| Power Requirement | 230 Volts, 1 Phase, 50 Hz |
| Conveyor Height | Adjustable: 800–850 mm |
| Dimensions | 1530 mm (L) × 850 mm (W) × 1900 mm (H) |
| Net Weight | 550 kg (Approx.) |
| Gross Weight | 740 kg (Approx.) |
| Container Diameter | 22 mm – 100 mm |
| Container Height | 15 mm – 100 mm |
| Screw Cap Diameter | 22 mm – 56 mm |
| Screw Cap Height | 15 mm – 18.3 mm |
Compact, adaptable design built according to GMP standards.
AISI 304 stainless steel contact parts for hygiene and durability.
Pneumatic bottle holding assembly ensures stable operation.
Background suppression sensor stops operation if no cap is detected.
No Bottle – No Cap system prevents wastage and misfeeds.
Pneumatic servo-driven head ensures precise torque measurement.
Multiple cap feeding systems available: vibrator feeder, mechanical orientator, or elevator.
No change parts required for different bottle sizes.
Unique positioning system prevents cap jamming.
Counting arrangement for batch control and production monitoring.
CE-certified electrical components for international compliance.
PLC-HMI interface for easy operation and parameter setting.
Emergency stop button for enhanced operator safety.
Automatic Head Up & Down System for flexible bottle height adjustment.
Toughened glass or acrylic safety cabinet for complete operator safety and dust-free operation.
Precision Capping: Servo torque control ensures accurate tightening for every screw cap.
Multi-Industry Use: Suitable for pharmaceuticals, breweries, cosmetics, oils, pesticides, and food.
Versatility: Handles round, square, and triangular containers with ease.
Efficiency: Automates capping at up to 30 bottles/minute with minimal manual intervention.
Reduced Downtime: Quick adjustments and no change parts required for bottle size variations.
Enhanced Safety: CE-certified electricals, sensors, and safety cabinet options.
Long Service Life: Stainless steel construction ensures durability and easy maintenance.
Scalable: Compatible with different cap feeding systems depending on production scale.
The TGSC-50T Screw Capping Machine finds wide usage across diverse sectors:
Pharmaceuticals: For bottles of syrups, suspensions, and oral liquids.
Distilleries & Breweries: For spirits, beer bottles, and specialty beverages.
Cosmetics & Toiletries: For lotions, shampoos, and personal care products.
Lube & Edible Oil: For bottles of motor oil, lubricants, and cooking oils.
Pesticides & Agrochemicals: For chemical containers requiring secure sealing.
Food & Ancillaries: For sauces, flavorings, and liquid food packaging.
Mineral Water: For screw-capped PET and glass water bottles.
As a reputed manufacturer, supplier, and exporter of advanced packaging solutions, Technogen Enterprise is known for delivering innovation, reliability, and compliance.
GMP-compliant designs tailored to pharmaceutical and food-grade applications.
Customization available for cap feeders, bottle formats, and torque requirements.
Global footprint with installations across multiple industries.
Strong after-sales support including installation, training, and service.
Cutting-edge engineering ensuring high uptime and consistent performance.
Servo-driven torque capping for precise and repeatable results.
Compatible with multiple cap feeding systems.
Compact, GMP-compliant design for space-saving and hygiene.
Flexible with different container shapes and sizes.
Output speed up to 30 bottles per minute.
Designed for pharma, cosmetics, food, and distilleries.
? Contact Technogen Enterprise today for quotations, technical specifications, and customized solutions to enhance your packaging efficiency.
