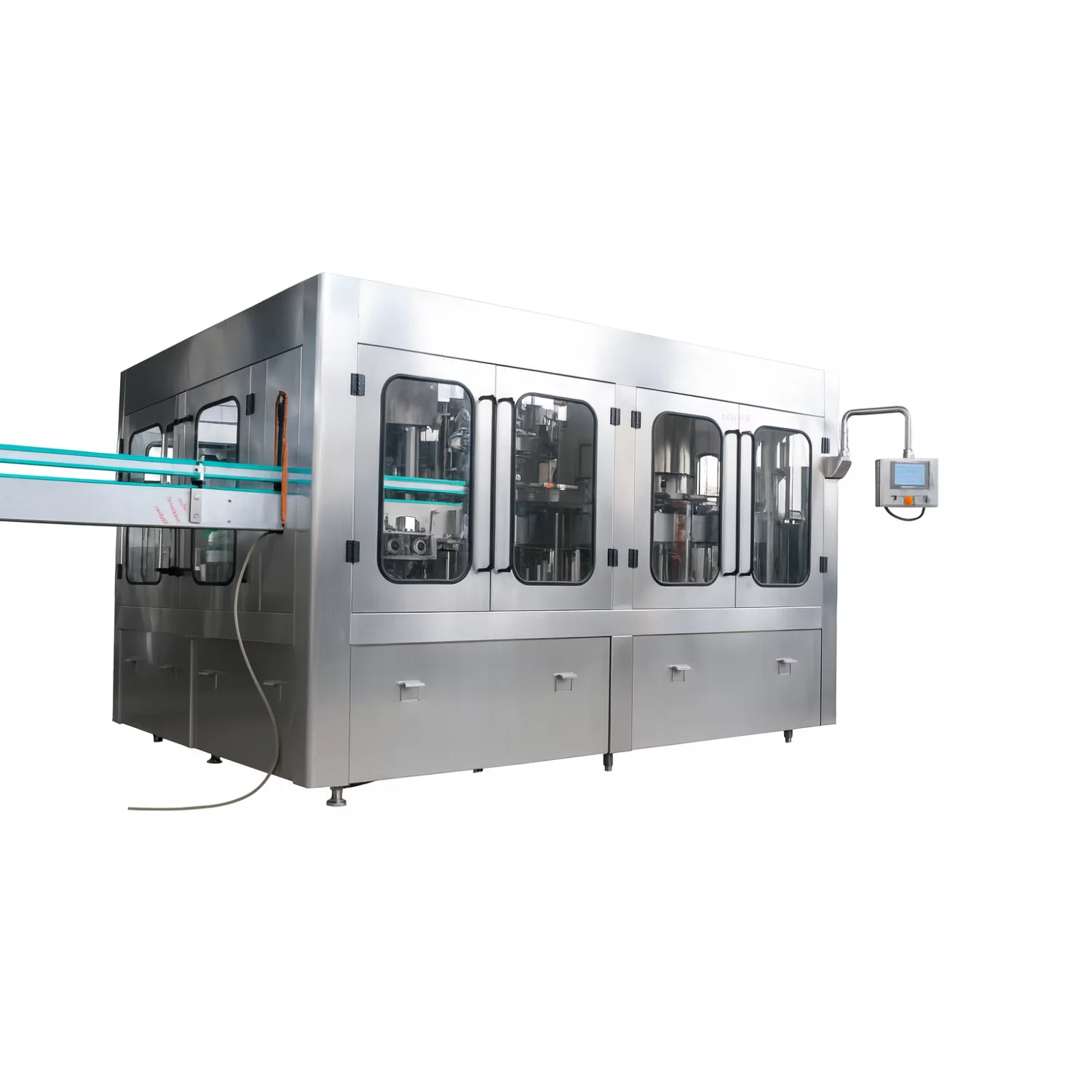

Automatic RFC Isobaric Carbonated Beverage Filling Machine For Glass Bottle:
Technogen Enterprise, a leading manufacturer, supplier and exporter of wide range of machinery proudly introduces its Automatic RFC Isobaric Carbonated Beverage Filling Machine, a high-performance monoblock solution built for precision bottling of carbonated beverages in glass bottles. Engineered with a confident blend of advanced filling technology and dependable mechanical design, this machine delivers outstanding accuracy, consistency and hygiene for carbonation-based beverage manufacturers.
Specially designed for 100 ml to 1000 ml glass bottles, the system integrates Rinsing, Isobaric Filling and Capping into a streamlined monoblock platform. Customers may choose between crown capping or ROPP aluminium capping, depending on their product category, market requirements or bottle design.
Technogen Enterprise positions this model as a strategic solution for beverage companies seeking a stable, high-speed, export-grade carbonation filling line that matches international quality benchmarks and offers long-term operational reliability.
Overview of the Machine
The Automatic RFC Isobaric Carbonated Beverage Filling Machine is built for beverages where carbonation stability, hygiene, and sealing integrity are essential. Typical applications include:
Carbonated beverages behave differently than still liquids. They demand:
This machine addresses all these factors through its advanced counter-pressure isobaric filling system, supported by a rigid stainless-steel structure, sophisticated valve design, and synchronized mechanical operations.
The result is a high-efficiency production platform capable of delivering uniform quality across thousands of bottles per hour with minimal operator supervision.
Machine Design & Construction
The monoblock is engineered with a robust stainless-steel frame and contact parts in SS304 / SS316L, ensuring durability, corrosion resistance, and compliance with food-grade standards. All surfaces are designed for easy cleaning, reduced maintenance, and hygienic operation.
Highlights include:
This configuration ensures long operational life and reliable performance under continuous production conditions.
Working Process
The RFC Isobaric Carbonated Drink Rinser Filler Capper Machine system executes three synchronized processes:
Every glass bottle entering the monoblock undergoes an internal cleaning cycle. The rinsing stage uses:
The rinser ensures bottles are free from dust, particles or micro-contaminants before entering the filling stage.
Isobaric filling is the gold standard for carbonated beverage bottling. The Automatic RFC Isobaric Carbonated Beverage Filling Machine uses:
How Isobaric Filling Works
Key Benefits of Isobaric Filling
This filling method ensures that every bottle maintains the beverage’s intended flavour, quality and carbonation profile.
The machine can be supplied with one of the following capping systems:
Crown Capping
ROPP Aluminium Capping
The capping turret is synchronized with the filling turret to ensure proper sealing without bottle damage.
Salient Features
Technical Highlights
The Automatic RFC Isobaric Carbonated Beverage Filling Machine is designed for high productivity and streamlined workflow. Key technical attributes include:
This feature set ensures the machine performs reliably in demanding beverage production environments.
Machine Advantages
Applications
This machine is ideal for:
It supports a wide range of glass bottle formats within 100 ml to 1000 ml.
Technical Specifications
Automatic RFC Isobaric Carbonated Beverage Filling Machine – Specifications
Parameter | Specification |
Bottle Material | Glass |
Bottle Size Range | 100 ml to 1000 ml |
Output Capacity | 2,000 – 9,000 bottles/hour |
Rinsing Heads | 8 / 12 / 18 / 24 / 32 |
Filling Heads | 8/ 12 / 18 / 24 / 32 |
Capping Heads | 4/ 6 / 8 / 10 |
Capping Type | Customer choice: Crown Capping or ROPP Aluminium Capping |
Filling Technology | Isobaric Counter-Pressure Filling |
Filling Valve Type | ULTRA Mechanical 2-Step |
CO₂ Pressure Range | 0.2 – 0.3 MPa |
Rinse Pressure | 0.4 – 0.6 MPa |
Construction Material | SS304 / SS316L |
Electrical Supply | 3-Phase, 415V, 50/60 Hz |
Automation | PLC + HMI |
Machine Operation | Fully Automatic |
Safety Features | Interlocking Guard Doors, Sensors, Emergency Stop |
Why Choose Technogen Enterprise?
Technogen Enterprise is recognized for its commitment to engineering excellence, manufacturing quality and customer satisfaction. With extensive experience in the beverage packaging sector, we offer:
Customers across breweries, soft drink companies and premium beverage brands rely on Technogen Enterprise for durable, efficient and future-ready filling technology.
Frequently Asked Questions (FAQs)
Q1: Can the machine handle both crown and ROPP capping?
It can be supplied with either Crown or ROPP, based on customer requirement.
Q2: What bottle sizes are supported?
100 ml to 1000 ml glass bottles.
Q3: Is it suitable for beer?
Yes. The isobaric counter-pressure system is ideal for beer.
Q4: Does it maintain carbonation?
Yes, the system is designed specifically to retain CO₂ throughout filling.
Q5: What is the machine’s output?
2,000 to 9,000 bottles per hour depending on head configuration.
Contact us for RFC Isobaric Carbonated Filling Machine
Technogen Enterprise invites beverage manufacturers to elevate their production standards with the Automatic RFC Isobaric Carbonated Beverage Filling Machine. Designed for reliability, precision and long-term performance, it is the ideal solution for carbonated beverage operations of all scales.
