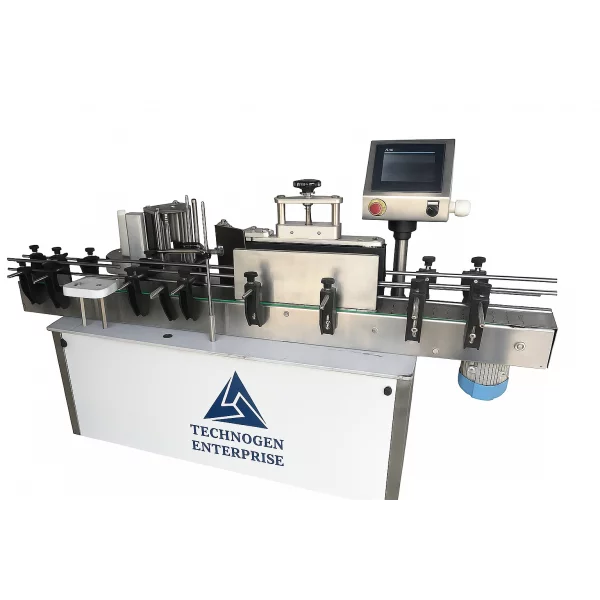

Round Bottle Sticker Labeling Machine

AvailabilityPre Order
Serial NumberTGSAL-125 / 250
CategoryLabel Applicators, Sticker Labeling Machine, Labeling Equipment, Labeling Machines
Payment MethodsCash, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 5.0/5 based on 3 customers reviews
5
3
100%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Round Bottle Sticker Labeling Machine Details

Technogen Enterprise makes it easy to label the round bottles with their innovative Round Bottle Sticker Labeling Machine. This machine is designed and manufactured with high precision in Ahmedabad, India, for reliable operations. 24/7 service support is provided for easy troubleshooting and maintenance.

Technogen Enterprise is pioneer manufacturer, supplier, & exporter of Round Bottle Sticker labeling machine based in Ahmedabad, India. Bottle Sticker Labeling Machine is excellent for Full / Partial Wrap around Labelling for all plastic, metal and glass round bottle & flexible to any type of industries.

Our TGSAL series of Round Bottle Sticker Labeling Machine Models can deliver the output of 50 to 250 bottles per minute depending on bottle diameter and label size.

Our Bottle Sticker Labeling Machine adopts the excellent quality Servo Motor operated Label Applicator.

This Wrap around Sticker Labeling Machine employs background Elimination Photoelectrical Sensor for bottle & fork type photoelectric sensor to sense the gap between consecutive labels.

The dominant feature of this labeling machine is “No change parts” needed for a different diameter of bottles, Tool-less changeover, Automated Label Length detection systems result in reducing downtime and enhancing production.


  SALIENT FEATURE OF ROUND BOTTLE STICKER LABELING MACHINE:

  • Compact Machine

  • CGMP Model.

  • Maintenance free machine.

  • Stainless Steel (SS 304) structure.

  • Heavy-duty construction results in prolonging the durability.

  • Heavy Reel mechanism to place the Label roll.

  • Brake assembly to ward off variation during releasing of Label roll.

  • No Change Parts Required for change in Label and Container size

  • Labeling accuracy within ±1 mm.

  • Labeling with tremendous stability and precise position.

  • Auto Label Length Detection. Photo electric sensor for smart label results in to “No Bottle No Labeling”.

  • Servo Motor Driven label Applicator & dispensing can be up to 13 meters/min.

  • DRP Belt module makes it easy to wrap around the bottle.

  • Colourful touch HMI based interface enables quick intuitive parameter entry and modification.

  • Simple and quick to operate.

  • Alternative operation mode: manual/automatic model.

  • Front panel start Button and emergency stop Button.

  • Variable speed Delrin conveyor results in to truly flexible labeling.

  • Ideal for all plastic, metal and glass round bottle, especially for wrap around product.

  • Provision for online batch coding like Ink Coder, Cassette Coder, Hot Foil Coder, SS Metal Stereo Box for printing, thermal inkjet printer.


TECHNICAL SPECIFICATION OF ROUND BOTTLE STICKER LABELING MACHINE MODELS:

Machine Model No

TGSAL-125

TGSAL-250

Brand

Technogen Enterprise

Technogen Enterprise

Automation Grade

Automatic

Automatic

Type

Automatic Round Bottle Sticker Labeling Machine

Automatic Round Bottle Sticker Labeling Machine

Usage/Application

To apply Self Adhesive / Pressure sensitive label over Round Bottle

To apply Self Adhesive / Pressure sensitive label over Round Bottle

Direction Of Movement

Left to Right

Left to Right

Bottle Suitable

· Vial Labelling

· Round Glass bottle Labeling

· Round Plastic Bottle Labeling

· Pet Bottle Labeling

· Vial Labelling

· Round Glass bottle Labeling

· Round Plastic Bottle Labeling

· Pet Bottle Labeling

Labeling Speed (Bottle/ Minute)

Up to 120 Bottles / min depending upon the label length

Up to 240 Bottles / min depending upon the label length

Driven Type

Servo motor driven Label applicator

Servo motor driven Label applicator

Control

Programmable logic controller (Any CE Certified PLC)

Programmable logic controller (Any CE Certified PLC)

Acceptable Diameter Of Bottle (mm)

20 to 90

20 to 90

Label Roll Diameter (mm)

300 mm Max. Ø

300 mm Max. Ø

Label Core Diameter (mm)

75 to 76

75 to 76

Dispensing Motor

Panasonic or equivalent

Panasonic or equivalent

Label Sticker Length (mm)

12 to 500

12 to 500

Label Sticker Height (mm)

12 to 170

12 to 170

Gap Between Two Labels (mm)

3 to 5

3 to 5

Number Of Labelling Dispenser

1

1

Accuracy Error

± 1 mm (does not include errors due to bottle or bottle or label)

± 1 mm (does not include errors due to bottle or bottle or label)

Conveyor Height

Adjustable from 800 to 850 mm

Adjustable from 800 to 850 mm

Machine Dimension

( L X W X H) mm

1830 x 760 x 1380

2130 X 850 X 1400

Power Consumption

1.5 KW

2 KW

Frequency

50 HZ

50 HZ

Voltage

230 V

230 V

Phase

Single Phase

Single Phase

Country Of Origin

Made in India

Made in India

ADDITIONAL ORDERING DETAILS OF ROUND BOTTLE STICKER LABELING MACHINE:

Minimum Order Quantity

1 Unit

Production Capacity

5 Unit per month

Product/Service Code

TGSAL-125 / 250

Delivery Time

4 weeks

Packaging Details



Crate packaging, wooden box packaging, export packaging available on request at additional cost.
