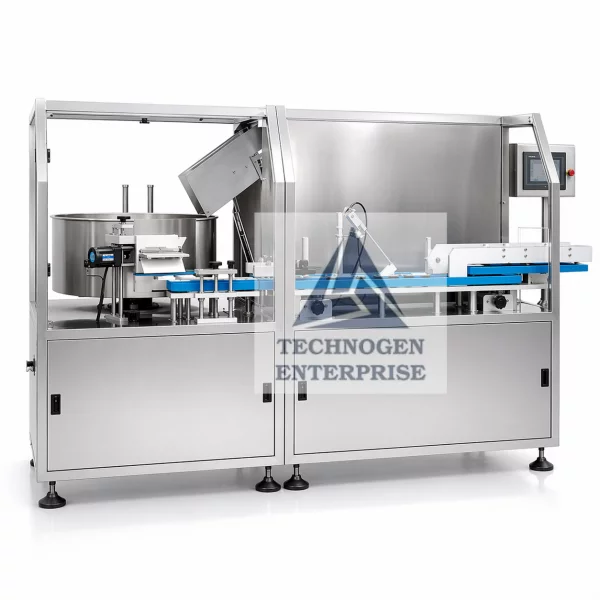

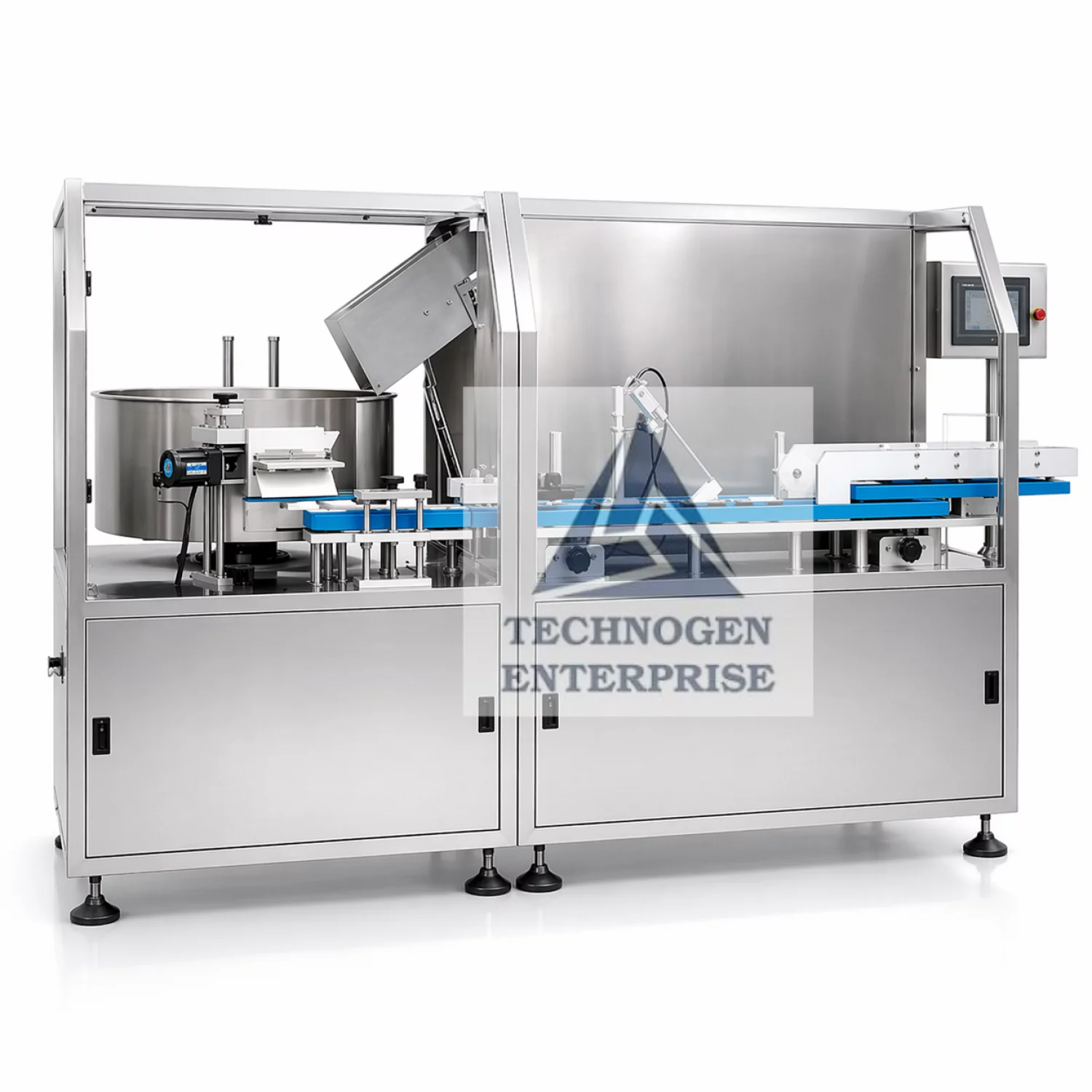

Technogen Enterprise, Ahmedabad, India, is a manufacturer, supplier and exporter of Automatic Bottle Unscrambler Machines for empty bottle feeding and orientation in packaging lines. The machine is designed to receive bottles in bulk condition, arrange them in the required direction and discharge them in an upright position for the next process.
We offer Automatic Bottle Unscrambler Machines in two model options to suit different production requirements:
Standard Speed Model – up to 60 bottles per minute
High Speed Model – up to 120 bottles per minute
The machine is suitable for packaging lines where empty bottles must be continuously supplied to filling machines, capping machines, induction sealing machines, labeling machines or other downstream equipment. It helps reduce manual bottle placement and improves the consistency of bottle flow in the production line.
The machine is built with a bottle loading hopper, bottle elevator, centrifugal sorting system, bottle orientation arrangement and discharge belt assembly. Based on the customer’s requirement, bottle size, line speed and plant layout, the machine can be offered in suitable configuration.
With AISI 304 stainless steel body construction, PLC-HMI based control system and toughened glass safety cabinet with door interlock, the Automatic Bottle Unscrambler Machine is suitable for industrial packaging applications requiring safe, organized and reliable empty bottle handling.
| Model | Speed Range | Suitable For |
|---|---|---|
| TGBUM-60 | Up to 50 to 60 bottles per minute | Medium-speed bottle packaging lines |
| TGBUM-120 | Up to 100 to 120 bottles per minute | High-speed automatic bottle packaging lines |
Note: Output speed depends on bottle size, bottle shape, bottle stability, line layout and downstream machine speed. Final suitability will be confirmed after reviewing actual bottle samples.
Empty bottles are loaded into the bulk hopper. From the hopper, the bottle elevator transfers the bottles to the sorting section in a controlled manner.
The centrifugal sorting system arranges the bottles and directs them toward the orientation section. Bottles that are not positioned correctly are returned for reorientation, while correctly positioned bottles move forward for further alignment.
In the orientation section, gripping belts and a hook mechanism guide the bottles into the required position. The bottle pivot block / straightening guide then brings the bottles into an upright vertical position.
Once the bottles are properly oriented, the discharge belt assembly transfers them smoothly to the next packaging machine.
Available in 60 BPM and 120 BPM model options
Automatic empty bottle feeding and orientation
Suitable for continuous transfer of bottles to downstream machines
Bottle loading hopper for bulk bottle feeding
Motorized bottle elevator for controlled lifting
Centrifugal sorting system for bottle arrangement
Orientation system with gripping belts and hook mechanism
Bottle pivot block / straightening guide for upright positioning
Discharge belt assembly for smooth bottle outlet
AISI 304 stainless steel body construction
PLC-HMI based control system
HMI options available as per customer preference
Toughened glass safety cabinet with AISI 304 frame
Door interlock arrangement for operator safety
Emergency stop and HMI alarm indication
Suitable for automatic packaging line integration
Designed as per bottle size, output requirement and line layout
| Particular | TGBUM-60 | TGBUM-120 |
|---|---|---|
| Machine Name | Automatic Linear Bottle Unscrambler Machine | Automatic High Speed Bottle Unscrambler Machine |
| Machine Type | CGMP Model | CGMP High Speed Model |
| Machine Speed | Up to 50 to 60 bottles per minute | Up to 100 to 120 bottles per minute |
| Bottle Diameter | 20 mm to 90 mm max | 20 mm to 90 mm max, subject to bottle sample approval |
| Bottle Height | 50 mm to 190 mm max | 50 mm to 190 mm max, subject to bottle sample approval |
| Operating Direction | Left to Right | Left to Right / As per line layout |
| Bottle Feeding System | Bulk Hopper with Bottle Elevator | Higher Capacity Hopper with Bottle Elevator |
| Sorting System | Centrifugal Sorting System | High Speed Centrifugal Sorting System |
| Bottle Orientation | Gripping Belt with Hook Mechanism | High Speed Bottle Orientation Arrangement |
| Bottle Discharge | Discharge Belt Assembly | Discharge Belt Assembly Suitable for Higher Speed |
| Control System | PLC-HMI Based | PLC-HMI Based |
| HMI | 4 Inch, 7 Inch or 10 Inch HMI as per customer preference | 7 Inch or 10 Inch HMI as per customer preference |
| Main Body Material | AISI 304 | AISI 304 |
| Safety Cabinet | Toughened Glass Safety Cabinet with Door Interlock | Toughened Glass Safety Cabinet with Door Interlock |
| Power Consumption | 2 KW | 3 KW |
| Air Pressure Required | 6 Bar | 6 Bar |
| Air Requirement | 30 LPH | To be finalized as per final machine configuration |
| Machine Dimension | 2800 x 1000 x 1550 mm | To be finalized as per bottle size and layout |
The Automatic Bottle Unscrambler Machine is suitable for automatic bottle packaging lines where empty bottles need to be supplied in upright condition before further processing.
It can be used for:
Empty bottle feeding before liquid filling machine
Bottle feeding before screw capping machine
Bottle transfer before induction sealing machine
Bottle feeding before sticker labeling machine
Pharmaceutical bottle packaging lines
Food and beverage bottle packaging lines
Cosmetic and personal care packaging lines
Chemical and household product bottle lines
Medium-speed and high-speed bottle packaging lines
Reduces manual bottle placement on conveyor
Helps maintain continuous bottle supply to the packaging line
Available in standard and high-speed models
Improves synchronization with downstream machines
Supports better line efficiency and bottle flow control
Helps reduce bottle feeding inconsistency
Suitable for different bottle sizes within the specified range
Improves operator convenience and safety
PLC-HMI control supports easier machine operation
Enclosed design provides better operational safety
Suitable for new packaging lines and line upgradation projects
| Requirement | Recommended Model |
|---|---|
| Production requirement up to 60 bottles per minute | TGBUM-60 |
| Production requirement up to 120 bottles per minute | TGBUM-120 |
| Medium-speed filling or capping line | TGBUM-60 |
| High-speed automatic packaging line | TGBUM-120 |
| Limited space or compact line layout | TGBUM-60 |
| Higher output and continuous automatic operation | TGBUM-120 |
Technogen Enterprise manufactures packaging machinery for domestic and export markets with a focus on practical application, machine suitability and long-term production use.
Our Automatic Bottle Unscrambler Machine is offered in two model options so that customers can select the machine as per their production capacity. Whether the requirement is for a medium-speed bottle line or a high-speed automatic packaging line, we can suggest the suitable model after reviewing the bottle sample, line speed and downstream equipment.
Before finalizing the machine, we recommend customers share actual bottle samples, bottle dimensions, required output, plant layout and downstream machine details. This helps us confirm the machine configuration and ensure proper integration with the complete packaging line.
As a manufacturer, supplier and exporter from India, Technogen Enterprise supports buyers with technical discussion, model selection and packaging line integration guidance.
An Automatic Bottle Unscrambler Machine is used to receive empty bottles in bulk, arrange them in the required direction and discharge them in an upright position for the next packaging process.
We offer two model options: TGBUM-60 for up to 60 bottles per minute and TGBUM-120 for up to 120 bottles per minute.
TGBUM-60 is suitable for medium-speed packaging lines, while TGBUM-120 is designed for high-speed automatic bottle packaging lines. Final model selection depends on bottle size, shape, stability and required line speed.
The machine is suitable for bottles with diameter from 20 mm to 90 mm max and height from 50 mm to 190 mm max, subject to bottle sample approval.
Yes, the machine can be integrated with filling machines, screw capping machines, induction sealing machines, labeling machines and other downstream packaging equipment.
Yes, actual bottle samples are recommended to confirm bottle handling, orientation, speed suitability and final machine configuration.
Yes, the machine is provided with a toughened glass safety cabinet, door interlock arrangement, emergency stop and HMI alarm indication.
